Case Study · Existing Conditions
Roof Condition Report for CrossFit eXalted in Sanford, FL
An 8,373 square foot aerial existing-conditions roof inspection for a commercial property owner. Annotated findings, severity ratings, and a written report delivered within 48 hours of the site visit.
Client
CrossFit eXalted
Location
Sanford, FL
Roof Area
8,373 sq ft
Year
2023
The Project

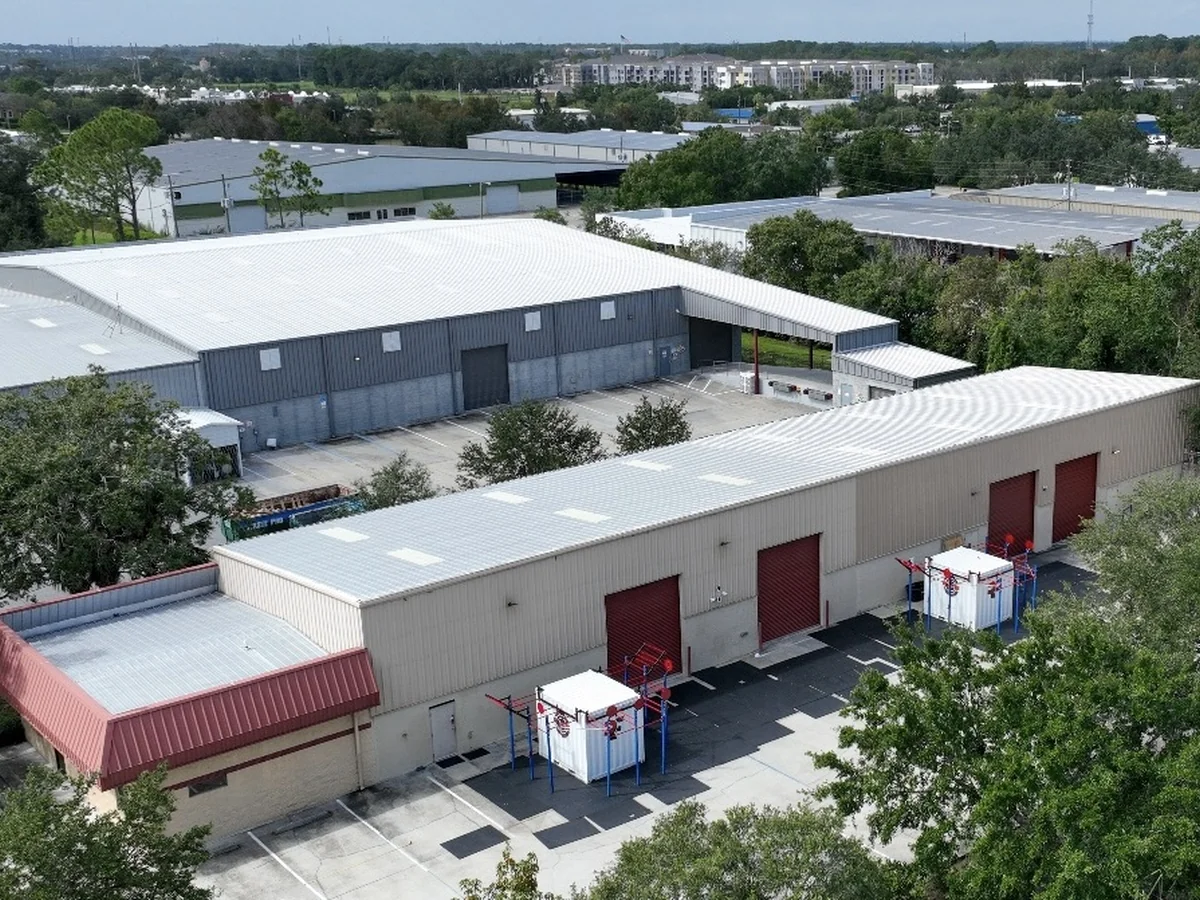

Adam Caratini, General Manager of CrossFit eXalted, needed a current and defensible record of the condition of his commercial building's roof at 118 Central Park Place in Sanford, FL. The property is a single-story commercial structure with a flat metal roof, and the existing record of its condition was informal at best.
An aerial existing-conditions roof inspection was the right fit. The capture is fast, the entire roof is documented in a single session at consistent resolution, and the deliverable is organized in a way that can be handed directly to a roofer, an insurance carrier, or a property manager without reformatting.
The Deliverable

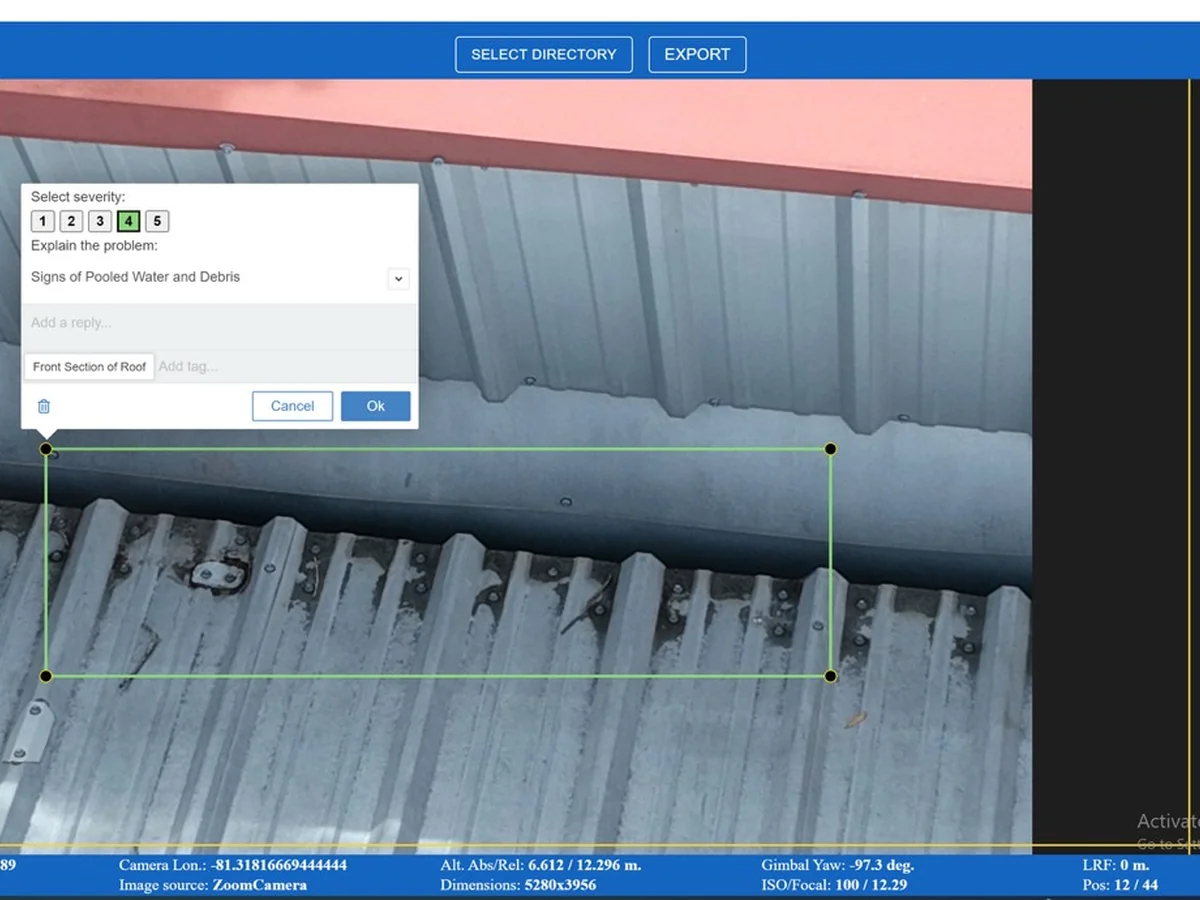

Below is a screenshot from the actual annotated report delivered to Adam. The green bounding box marks a specific area of concern; the dialog captures the severity rating, problem description, and location tag.
The annotated ImageInspector report, a dated, severity-rated record of every finding.
Key Findings
The report flagged five categories of condition across the roof surface. Each finding was location-tagged, severity-rated, and accompanied by a written description.

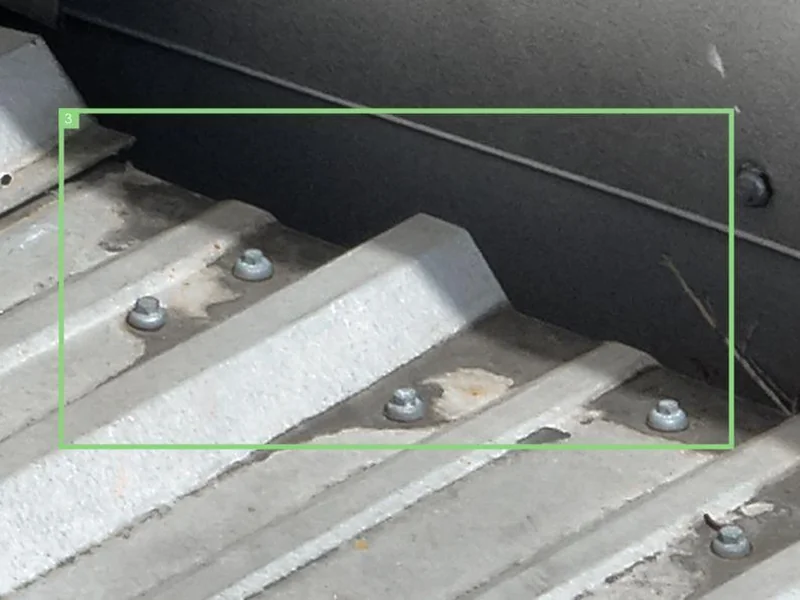

Signs of Possible Repairs
Sections of the roof surface showed evidence of prior patch work and repairs. Recommended for further inspection by a qualified roofer to confirm current condition and remaining service life.

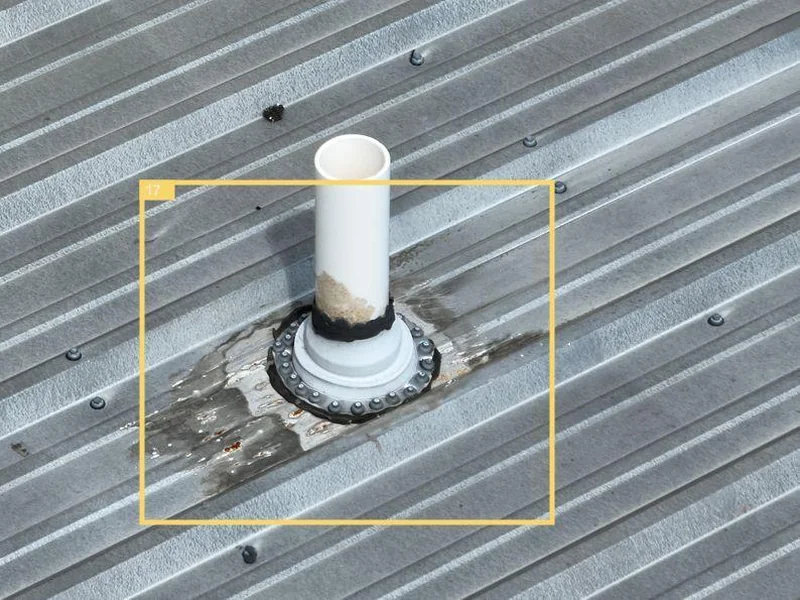

Pooled Water and Debris
Standing water and organic debris were identified in low areas of the roof. Recommended for cleaning and follow-up inspection to confirm the underlying surface is intact.

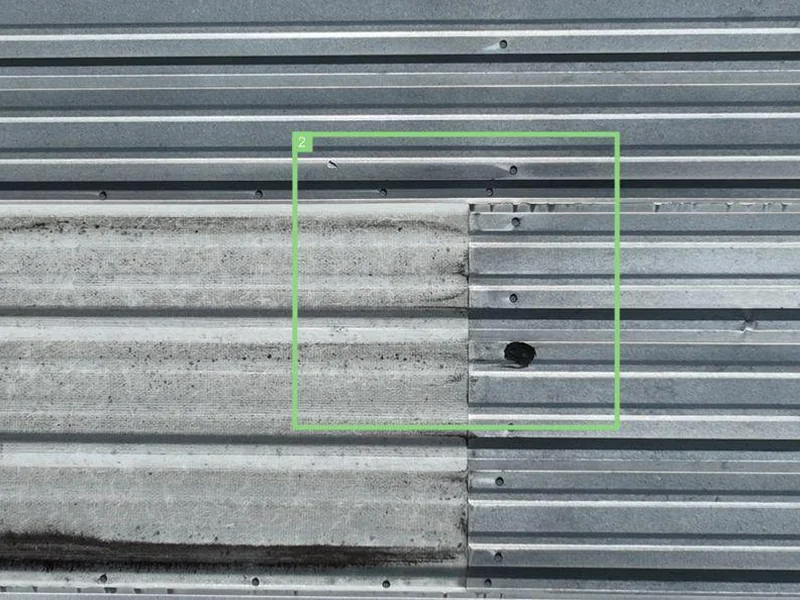

Roof Vent Rust and Gasket Wear
Several roof vents showed surface rust and gasket deterioration at the penetration boot. Recommended for closer inspection and, if needed, re-seating or replacement by a roofer.

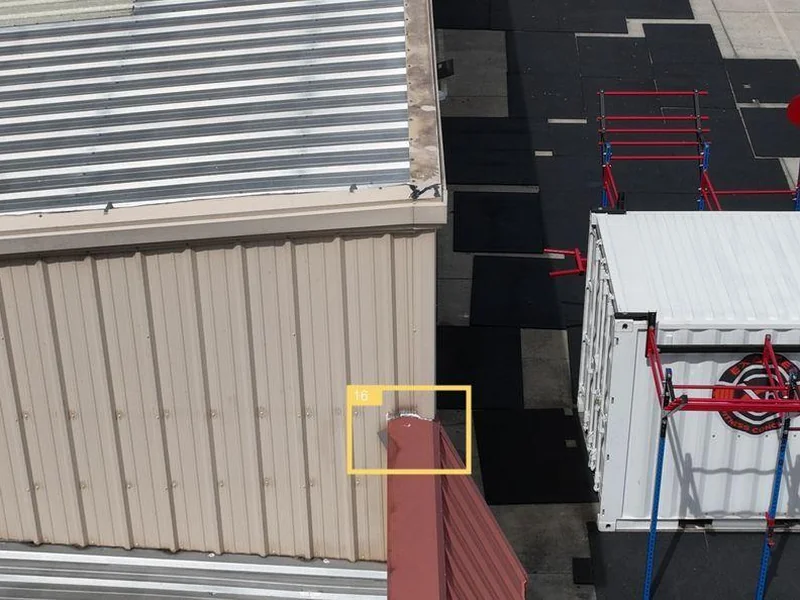

Weather Wear and Edge Conditions
General oxidation, streaking, and edge flashing wear consistent with long-term Florida UV and storm exposure. Recommended for ongoing monitoring at the next annual inspection.
The Outcome
The report gave Adam three things he did not have before:
A Proactive Maintenance Plan
Each finding category was severity-rated and prioritized. Adam was able to brief his roofer on which items to address first, with the annotated imagery as the discussion reference.
A Dated Property Record
The full report (annotated imagery, written narrative, raw image archive) became a dated record of the roof condition as of December 2023. If a future insurance question or warranty claim comes up, the record is on file.
An Inventory Baseline
The measurement grid and roof footprint documentation gave Adam a baseline of the property as it stood. Future re-inspections can be compared against this baseline to track change over time.
"I couldn't be happier with the outstanding service I received from Skyland Pixels. The attention to detail in their roof inspection was remarkable. They used commercial aircraft to capture every angle and aspect of our roof, providing us with a comprehensive report that highlighted any issues or areas of concern."
Public Case Study
SPH Engineering, the manufacturer of the ImageInspector software used to annotate and assemble the report, published this project as a public case study.
Related Services
An existing-conditions roof report is one of four sub-services under our construction documentation pillar. Most commercial projects engage us on more than one.
Aerial Construction Photography
Site context, marketing imagery, dated aerial records. Single visits and ongoing cadence.
Preconstruction Site Survey
High-resolution site models and photo sets before mobilization. Used for pre-bid, permit packages, and pre-construction stakeholder communication.
Lender Documentation
Dated, geo-tagged progress records for construction loan draws. Packaged with your draw request or handed off directly to the lender.
Frequently Asked Questions
How long did the CrossFit eXalted roof condition report take from booking to delivery?
Single site visit, with the report delivered within 48 hours of the flight. Adam received the full report (annotated imagery, written narrative, and raw image archive) and was able to share it with his roofer and insurance contact the same week.
Was the inspection safe for a roof in service?
Yes. The entire capture was done by a commercial aerial platform flying above the property. No one went on the roof. The gym stayed open during the inspection. The lower-resolution pre-flight ensured the airspace was clear and the building access was unrestricted.
What did the deliverable include?
A stakeholder-ready roof condition report: annotated aerial imagery (each finding marked with a severity rating, location tag, and description), a written narrative covering the five finding categories, the raw image archive, and a measurement grid of the roof footprint. Adam used the report to brief his roofer on priority items and to keep a dated record for property management.
How is a roof condition report different from a standard roof inspection?
A traditional roof inspection puts a person on the roof with a clipboard. An aerial existing-conditions report captures the entire roof surface in one pass at consistent resolution, with each finding geo-tagged and severity-rated. The deliverable is easier to share with a roofer, insurance carrier, or property manager because the photos and annotations are already organized into a single PDF.
Could this be done as a re-inspection after repairs?
Yes. Existing-conditions roof reports are well-suited to a re-inspection cadence: one capture before repairs, one capture after. Each capture becomes a dated, geo-tagged record of the roof condition at that point in time. We did not do a re-inspection for CrossFit eXalted, but the same workflow is available for any property owner who wants a before/after record.
